Heart Rhythms, Part 5: Premature Beats

There are 3 main types of premature beats. PAC's, PJC's and PVC's.

PAC

PAC's are Premature Atrial Contractions. While the SA node normally regulates the heartbeat during a sinus rhythm, PACs occur when another region of the atria depolarizes before the sinoatrial node and thus triggers a premature heartbeat.

Clear as mud? In English, another part of the upper chambers of the heart prematurely fire off an electrical impulse causing an early beat. On the EKG it will have a deformed P wave (because it's not originating in the SA node), will have a narrow QRS complex, and be earlier than the other beats. After the PAC there were be a compensatory pause, a delay, after the premature complex, before the next regular complex.


What does it mean? Nothing. Lots of perfectly healthy people have PAC's. Don't stress about it. I don't.

PJC

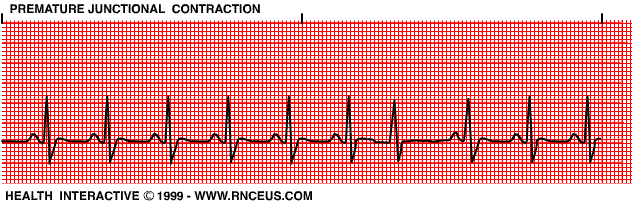

PJC are Premature Junctional Contractions. While the SA node normally regulates the heartbeat during a sinus rhythm, PJCs occur when AV node depolarizes before the sinoatrial node and thus triggers a premature heartbeat.

Yes, it sounds a lot like a PAC. Very similar, just with a different origin. On the EKG they will look like a PAC except that there may not be a P wave, the P wave may be inverted, or after the QRS complex. Just like with a junctional rhythm.


Once again, these can happen with healthy hearts. Not too much to worry about.

PVC

PVC is a Premature Ventricular Contraction. While the SA node normally regulates the heartbeat during a sinus rhythm, PVCs occur when ventricles depolarize before the sinoatrial node or the AV node and thus triggers a premature heartbeat. At times PVCs can be felt as chest palpitations or a "missed heart beat" but they also occur in healthy hearts. Since the ventricles are contracting before they have time to fill with blood a PVC is not as efficient at pumping blood.

When PVCs happen more that once they can fall into a number of categories.  If every other beat is abnormal, you can describe it as bigeminal. If every third beat is aberrant, it is trigeminal; every fourth would be quadrigeminal.


If you have 2 PVCs back to back they are considered couplets. 3 are considered triplets. More than 3 PVCs in a row is considered a run of V-Tach. Unlike PACs, PJCs and the occasional PVC, runs of V-Tach is something to be concerned about.


Some possible causes of PVCs include:

• Ischemia
• Certain medicines such as digoxin, which increases heart contraction
• Myocarditis
• Cardiomyopathy, hypertrophic or dilated
• Myocardial contusion
• Hypoxia
• Hypercapnia (CO2 poisoning)
• Smoking
• Alcohol
• Drugs such as cocaine
• Caffeine
• Tricyclic antidepressants
• Magnesium and potassium deficiency
• Calcium excess
• Thyroid problems
• Chemical (electrolyte) problems in the blood
• Heart attack
• Adrenaline excess
• Lack of sleep/exhaustion
• Stress

When PVCs all look the same on the EKG they are considered monomorphic or unifocal. This happens because the PVCs are all origintaing in the same location. If the PVCs have more than one look to them they are considered polymorphic or multifocal. This means they are stemming from multiple focal points in the ventricles.

Heart Rhythms Part 1: Basic Anatomy
Heart Rhythms Part 2: Sinus Rhythms
Heart Rhythms Part 3: Junctional Rhythms
Heart Rhythms Part 4: Ventricular Rhythms
Heart Rhythms Part 5: Premature Beats
Heart Rhythms Part 6: Heart Blocks

Heart Rhythms Part 4: Ventricular Rhythms

As we learned in Part 3 the AV node will initiate an electrical impulse if it fails to receive one from the atria in a timely manner. This is also true for the ventricles. If they fail to receive an electrical impulse from the AV node they will fire on their own, albeit at a much slower rate (20 to 40 beats a minute). On the heart monitor a ventricular rhythm is characterized by a wide QRS complex. In other words, if it has a wide QRS complex, it's a ventricular rhythm of some sort.

There are several ventricular heart rhythms/arythmias and all of them have the potential to be lethal. Some of them are always deadly.

I'll start with ventricular rhythms. The ventricles have an intrinsic rate between 20 and 40 beats per minute. Clearly, if you're at this point, you are having some major issues medically speaking. So now that you can recognize a ventricular rhythm (by the wide QRS complex) the rate becomes important.

• <20 - Recheck for a pulse, I bet they're dead.
• 20 to 40 - Ideoventricular rhythm
• 40 to 100 - Accelerated ventricular rhythm
• 100+ Ventricular tachycardia (V-Tach), again, check for pulses. Often a lethal heart rhythm.

An ideoventricular rhythm. Note the wide QRS complexes.

A sinus rhythm going into V-Tach. This photo demonstrates how much wider the QRS complexes really are from a sinus thythm.

Ventricular fibrillation I think is best described as your heart having a seizure. The entire muscle just spasms and ceases to pump blood. This is always a lethal heart rhythm.

A is course V-Fib, B is fine V-Fib

The last ventricular arrhythmia is Torsades De Puentes which means twisting of points. This is a form of V-Tach with some specific characteristics on the EKG:

• Rotation of the heart's electrical axis by at least 180º
• Prolonged QT interval
• Preceded by long and short RR-intervals
• Triggered by an early premature ventricular contraction (R-on-T PVC)

You can actually see the "twisting of the points" best in leads II, III, and aVR.
